Product Description: Hangyu High Precision Power Press Main Performance and Characteristics: The high-rigidity body is d

Send your inquiry

DESCRIPTION

Basic Info.
Automatic Grade Automatic
Power Source Pneumatic
Precision High Precision
Certification CE, ISO 9001
Condition New
Feature Sercurity and High Efficent
Transport Package Steel Pallet
Specification 25T. 35T. 45T. 60T. 80T. 110T. 160T. 200T. 315T
Trademark HY
Origin China
HS Code 846210100
Production Capacity 500 PCS/Year
Product Description


Product Description:
Hangyu High Precision Power Press Main Performance and Characteristics:

The high-rigidity body is designed, the high-quality steel plate is used for welding, and the stability and reliability of the precision of the whole machine are high by relieving the internal stress:I . The precision machining is high, the noise is low, and the comprehensive clearance is low;II. The symmetrical six- -face long guide rail of the sliding block is used for guiding, so that precision is high, and the operation is stable;III. The adjustment of the mold height is precision, safe, convenient and reliable.
Product Parameter :

SpecificationAPA-25APA-35APA-45APA-60APA-80APA-110APA-160APA-200
Capacity25 35456080110160200
Rate tonnage point3.23.23.244666
Speed changing60-14040-12040-10035-9035-8030-6020-5020-50
Stroke707080120150180200200
Die height195220250310340360460460
Slide adjustment505560758080100110
Presses weight2.133.85.66.59.61623

APA Series High precision Power Press Main Features
Hangyu APA series power press is high precision punching machine , this model has better precision and efficiency than traditional JF SERIES punching machine.Vertical crankshaft, compact structure,crankshaft after forging high-frequency quenching grinding, smooth finish, flexible rotation; rectangular six-side extension of the guide, high precision guide, the upper table and the slider with a screw connection.
Detailed Images:

C-Frame Deep Throat Pneumatic Open Front with Fixed Bed Punching Machine


Pneumatic ClutchIt has more advantages than traditional mechanical clutch power press. Pneumatic clutch gives this machine higher performance and makes the machine safer and more energy-efficient.

Frequency Converter
Brand: DELTA
Original: Tainwan
This machine can adjust the punching working speed by this Frequency Converter, so it will have better performance and lower power dissipation than other noraml model machine.

Pneumatic system
Brand:Hangyu
Original: China
Two spare air sources. The gas pressure fluctuation of the gas storage tank is in the range of 15% to 20%, and a safety valve is arranged on the gas tank. The main air source of the press has pneumatic triplex, and the important parts such as clutch, brake and balance cylinder have oil mister.

Security Control Section
Brand:Hangyu
Original: China
Including safety warning lights, pressure protection switches, lubrication fault check switches, flywheel brake release in place switches, press top dead center stop protection, line oil-proof, anti-wear, press power cut-off button (installed on the main operation panel) , emergency stop and emergency stop reset operation, etc .

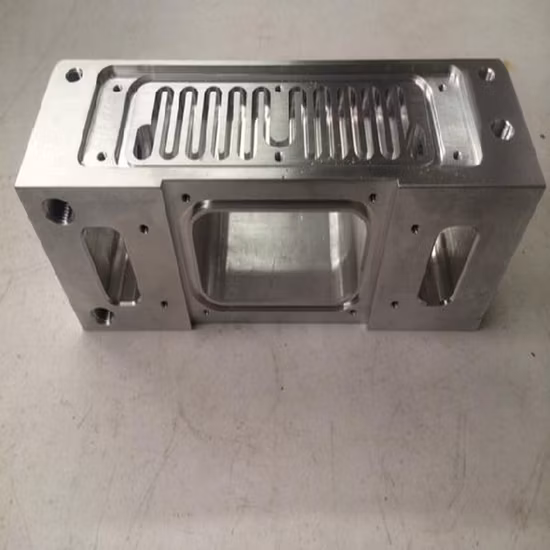

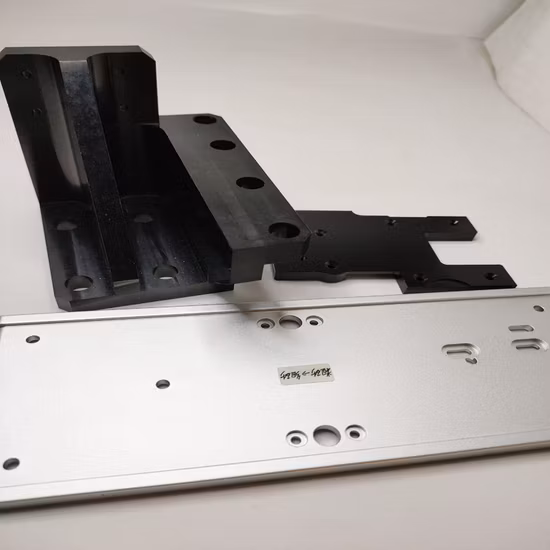

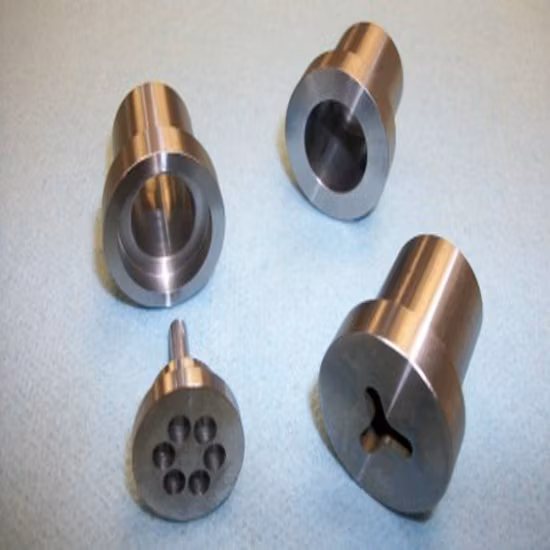

Sample workpiece:

Advantage

Our Service

C-Frame Deep Throat Pneumatic Open Front with Fixed Bed Punching Machine


Certifications.

C-Frame Deep Throat Pneumatic Open Front with Fixed Bed Punching Machine


Our Company

C-Frame Deep Throat Pneumatic Open Front with Fixed Bed Punching Machine


Hangyu Machine Tool Ltd. are professional in metal proccessing machine industry. Hangyu Machinery Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines. We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.
Logistics packaging
FAQ:
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer and a trader in the same time.Q2: What's the lead time?
A: It usually takes about 30-45 days for production depending on your order quantity.Q3. What is the Minimum Order Quantity (MOQ)?
A: only 1pc ,but if you need OEM services, please contact with us before you send order.Q4: Do you accept OEM order?
A: Yes, we can. Welcome to do OEM. Please contact us to talk about the details.Q5: What's your payment terms?
A: We usually accept T/T as the main payment terms, and other payment can also be negotiated.
